Metu offers the customers surface treatment plants for functional and decorative purposes. We provide an extensive range of service from a single source.

Our specialists ensure that the parts are perfectly coated for functional characteristics and longerlife. They also guarantie extremely high process stability to fullfill demanding exclusive requirements.

We build surface treatment plants for both electrolytic and chemical coating from small to big volumes work piece transfer can be managed with drums or frames. We develop also individuell solutions for all surface finishing projects.

Our high efficient plant technology allows to adapt flexible and quick differing requirements and combines highest possible throughput and constant quality.

For a fault-free coating many parameters should be measured, monitored and managed during the simultaneous processes. The significant features of our fully automated systems:

• Cleaning, rinsing or activating processes before coating

• Individually tailored processes to meet each user's requirements

• Rotating / panning drum for part movement

• Suited for small to big volumes

• Continuous oscillation of the parts in medium

• Automatic closed basins

• Flooding tank or /and spray tank

• Electrical heating with cartrige heaters and protection sleeve from stainless steel

• Various filtration units,

• Drip tray with leakage warning probe

• Hot air drying

• Siemens control unit

• Interior lighting

• Glas windows at the front side

• Automatic drainage unit

• Ultrasonic modules

• Transport cart on linear axis with maintenance-free servomotor

• Oil seperator

• Operation without exhaust air due to integrated air suction unit and condenser

• Automatic chemical dosing

• Remote control

• Modem connection

• Measuring and monitoring process parameters conductivity, ph, etc…

• Automatic disposal of process mud

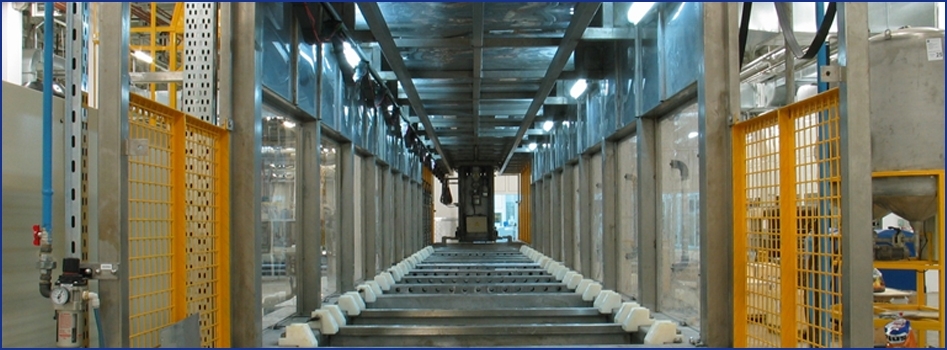

Treatment basins, internal piping, pumps, filters, oil seperator and other aggregates according to the selected option are installed in a system housing from stainless steel. The process can be watched through glass windows mounted to the front side. Service doors are installedat the backside of the machine. The driptray made of stainless steel equipped with a leakage warning probe is integrated to the housing.

The plants have a modern Siemens Control Unit. The operator friendly software allows easy adjustment of all programms, parameters, corrections, etc. Various treatment programms with different treatment cycles, temperatures, pressures and also part movement can easily be created and selected from the operating panel. The respective programm step and the detailed fault diagnosis are displayed at the screen.
