The increasing automation degree in manufacturing systems underlined the necessity for flexible and automatic material flow.

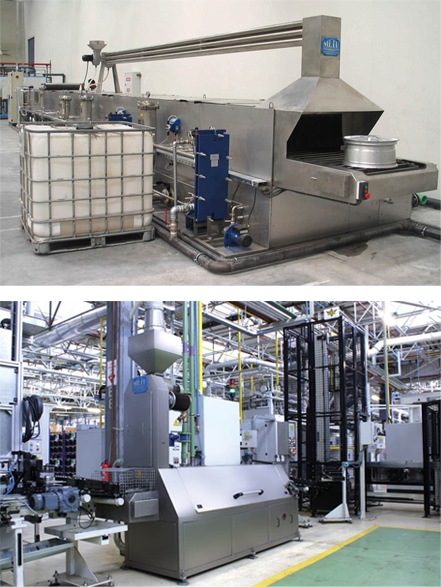

Die Tunnel cleaning plants ensure high productivity and flexibility in short cycle times. They can be easily interlinked with production lines which allows a complete automatic manufacturing without additional handling.
A wide range of conveying systems can be used for transfering the parts between the stations due to workpiece requirements to assure maximum cleanliness. Continuous full flow filtration through appropriate filtering system removes any dirt and residual contamination during all cleaning stages and achieve best cleanliness results.
.jpg)
Sequence of process can be individually tailored to meet each user's requirements
• General washing
• Targeted washing in different pressure levels
• Rinsing
• Targeted drying
• General drying
• Vacuum drying
The modular design of the machine provides for customized solutions for individual needs. Loading and unloading can be handled depending on customer request manually or automatically. All treatment stations, internal piping, pumps, filters, oil seperator and other aggregates according to the selected option are installed in a system housing from stainless steel.
The process can be watched through glass windows mounted on the front side. Service doors are installed at the backside of the machine. The driptray made of stainless steel equipped with a leakage warning probe is integrated to the housing.
Significant Features
• Low cycle times («1 minute)
• Suited for small to big volumes
• Conveyor speed adjustable
• Various conveyor systems
• Spray cleaning
• Customer design cleaning, rinsing and passivation and drying stages
• No change-over for same diversity
• Automatic workpiece transfer
• Electrical heating with cartrige heaters and protection sleeve from stainless steel
• Various filtration units
• Drip tray with leakage warning probe
• Hot air drying
• Interior lighting
• Glas windows at the front side
• Automatic drainage unit
• Oil seperator
• Ultrafiltration
• Operation without exhaust air due to integrated air suction unit and condenser
• Automatic cleaner dosing
• Demagnetization of parts
• Vacuum drying outside on the conveyor (for simultaneous working)
• Remote control for easy maintenance
• Modem connection
